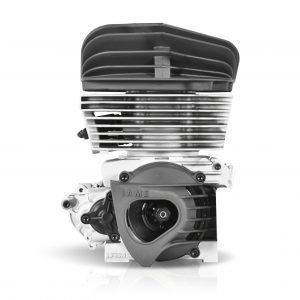

The KA100 is a user-friendly, 22HP, complete engine package with a simple ignition system, fixed pipe, machined Tillotson carb, and an onboard push button starter. The IAME KA100 includes many of the parts utilized in the popular IAME X30 engine, and also uses the IAME Mini Swift coil and ignition. IAME USA has added this offering for North America to provide a more economical solution to high performance two cycle racing.

Technical Specifications

• model	Reedjet KA100 – Clubman
  description	Single cylinder – 2 stroke
  class	KA – Clubman
  bore	Ø 48,20mm
  max bore	Ø 48,53mm
  stroke	54,00mm
  displacement	98,53cc
  ports	2
  inlet system	Reed Valve
  lubrication	Oil mixture
  ignition system	Analogic with adjustable timing
  transmission	Centrifugal Dry Clutch
  cooling system	Air
  balancer shaft	–
  starter	Electric
  carb. model	Tillotson HW 33A
  max power	22 Hp
